TECOBAR

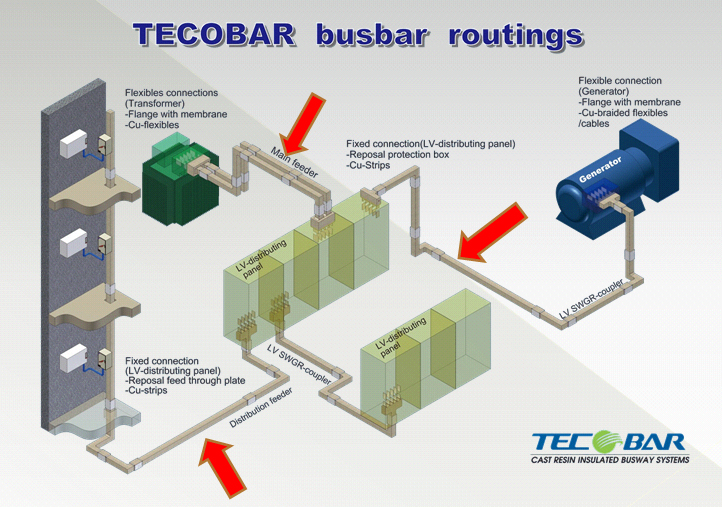

TAIAN-ETACOM TECHNOLOGY was formally called TAIAN Electric Co., Ltd.(TECO GROUP). With the drastic increase in the requirement of safety and stability for power distribution, the traditional power cable and metal-enclosure busway can no longer fulfill the requirement from customers. Therefore, the cast resin insulated busway (Busduct System)TECOBAR is the best solution in order to meet the requirement. To provide the safest and most reliable power systems to the world is our commitment. Thus, your precious comments and supports are the most incentive to us.

• Whole Busway route cast-resin molded (Junction part between elements included aswell) - MAINTENANCE FREE!! PRODUCT PROVEN TO BE IN EXCELLENT CONDITION OVER YEARS.
• Products are Dekra, Germany, KEMA, Holland, certified; China 3C Certified.
• LV Busway System - Fireproof Capability Ceritified (CNS14286, IEC60331, BS6387) Highest Protection level (Waterproof/Dustproof) - LV:IP 68; MV: IP 67.
• Best Class of Mechanical impact - IK 10 (IEC 62262)
• Seismic Restraint Certified (tested including junction connected) - 0.8G passed.
• Anti-Explosive Certified.
• Compact Dimension - easy to install; space saving.
• Highly flexible to fit in any design condition.
• Electromagnetic Compatibility.
• Excellent Chemical substance withstand ability.

Low Voltage Busway
Low Voltage Cast-Resin Insulated Busway Manufacturer

Low Voltage Busway Manufacturer

For more than 15 years, we have been specializing in providing Busway and Busduct.
We are professional manufacturer of Low Voltage Cast-Resin Insulated Busway. Our Low Voltage Cast-Resin Insulated Buswayis designed to meet your specific technical and performance requirements.

1. Comply with IEC 60439-1、 IEC 60439-2、IEC 61439、CNS 14286.
2. Purity 99.9% and conductivity 98%IACS
3. Overload + 20% for 2 hours/day
4. Degree of protection:IP68
Mechanical impacts:IK10
5. Fire Proof: 750 Degree Celcius/3hr (IEC60331-21)
840 Degree Celcius/30mins (CNS14286)
6. Short circuit current: Max 120kA/s
7. Low EMC
8. Insulation level: Class B 130 Degree Celcius
9. Aging test approved:50 years.
10. Maintenance free

Medium Voltage Busway
Medium Voltage Cast-Resin Insulated Busway Manufacturer

Medium Voltage Busway Manufacturer
As a Medium Voltage Busway Supplier for more than 15 years, we have been specializing in providing Busway and Busduct.We are professional manufacturer of Medium Voltage Cast-Resin Insulated Busway. Our Medium Volt

1. Comply with IEC 60694, IEC 62271-200, IEC 62771-201 IEC 62271-202 and IEEE C 37.23.
2. Purity 99.9% and conductivity 98%IACS
3. Degree of protection:IP67
Mechanical impacts:IK10
4. Partial Discharge: ≦20 pc.
5. Short circuit current: Max 100kA/s
6. Low EMC
7. Insulation level: Class B 130 Degree Celcius
8. Acceleration Aging test approved:50 years.
9. Maintenance free
